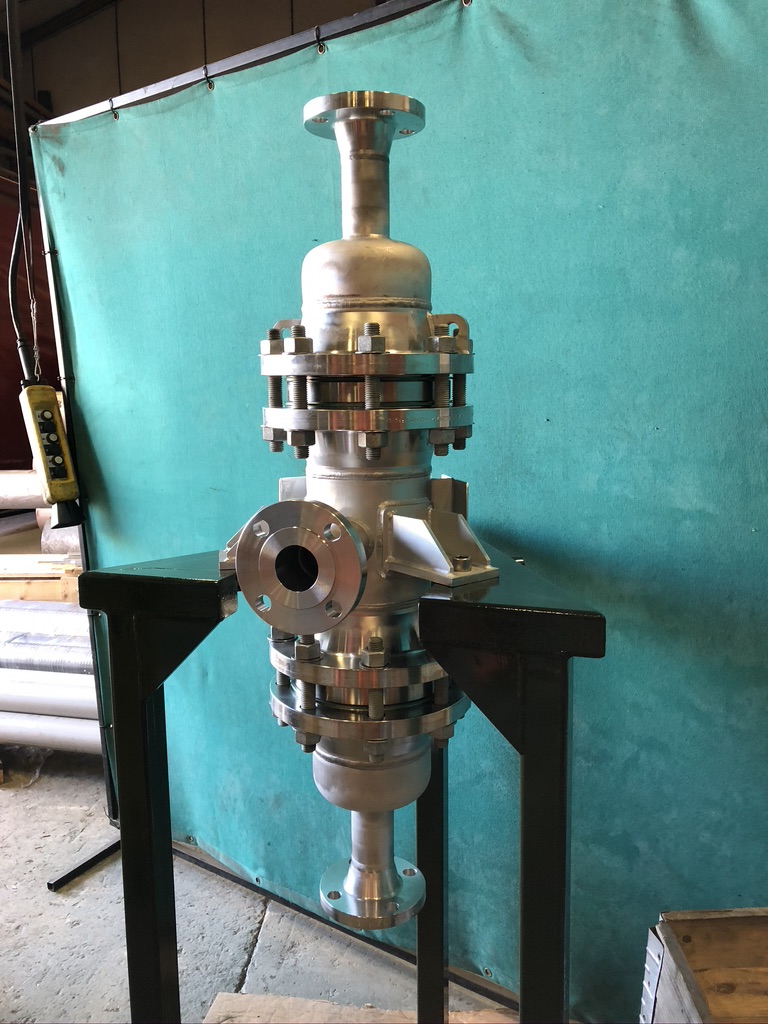

Sand Management - Desanding Hydrocyclones

The EnSep ENS range of desanding hydrocylones have been developed to tackle sand production, particularly for protection of downstream equipment and produced water reinjection applications.

Summary

Developed in house, the EnSep ENS range combines optimum separation efficiency and capacity:

• ENS25 for fine particle removal for produced water reinjection.  Our highest particle removal efficiency cyclone (typical d98 <5 micron)
• EN50 for produced water desanding, and sand cleaning.  Designed to be suitable for most standard offshore applications (typical d98 <10 micron)
• EN80 for coarser sand removal, particularly suitable for equipment protection.  (typical d98 <25 micron)

Advantages

• Range covering virtually all potential applications

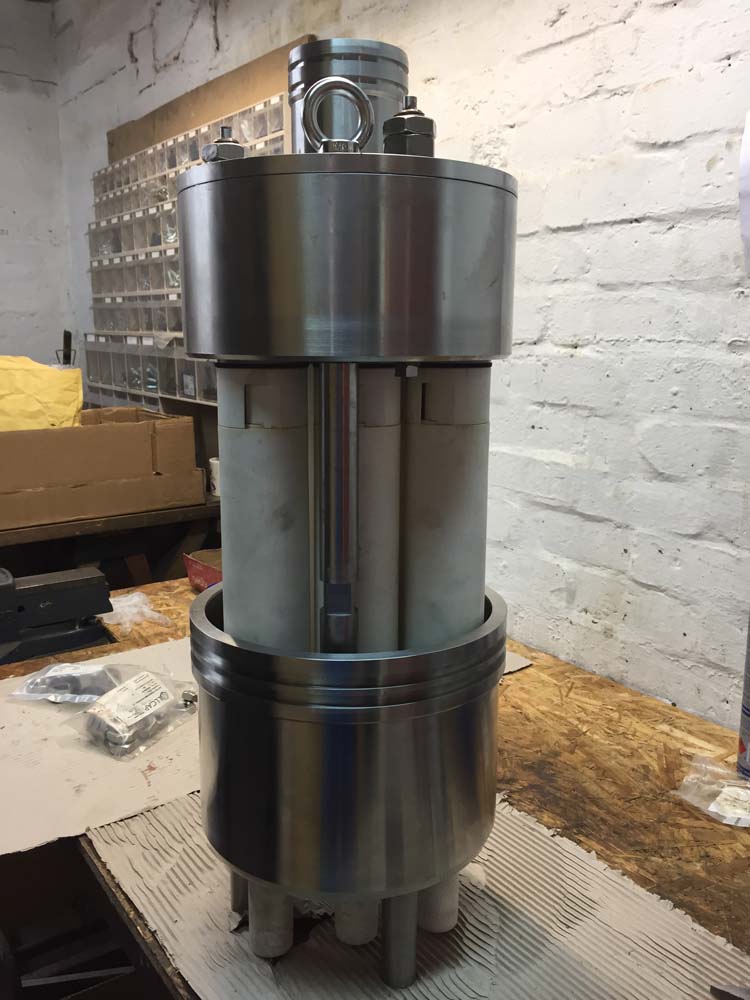

• Can be retrofitted into existing Pressure Vessels
• No moving parts

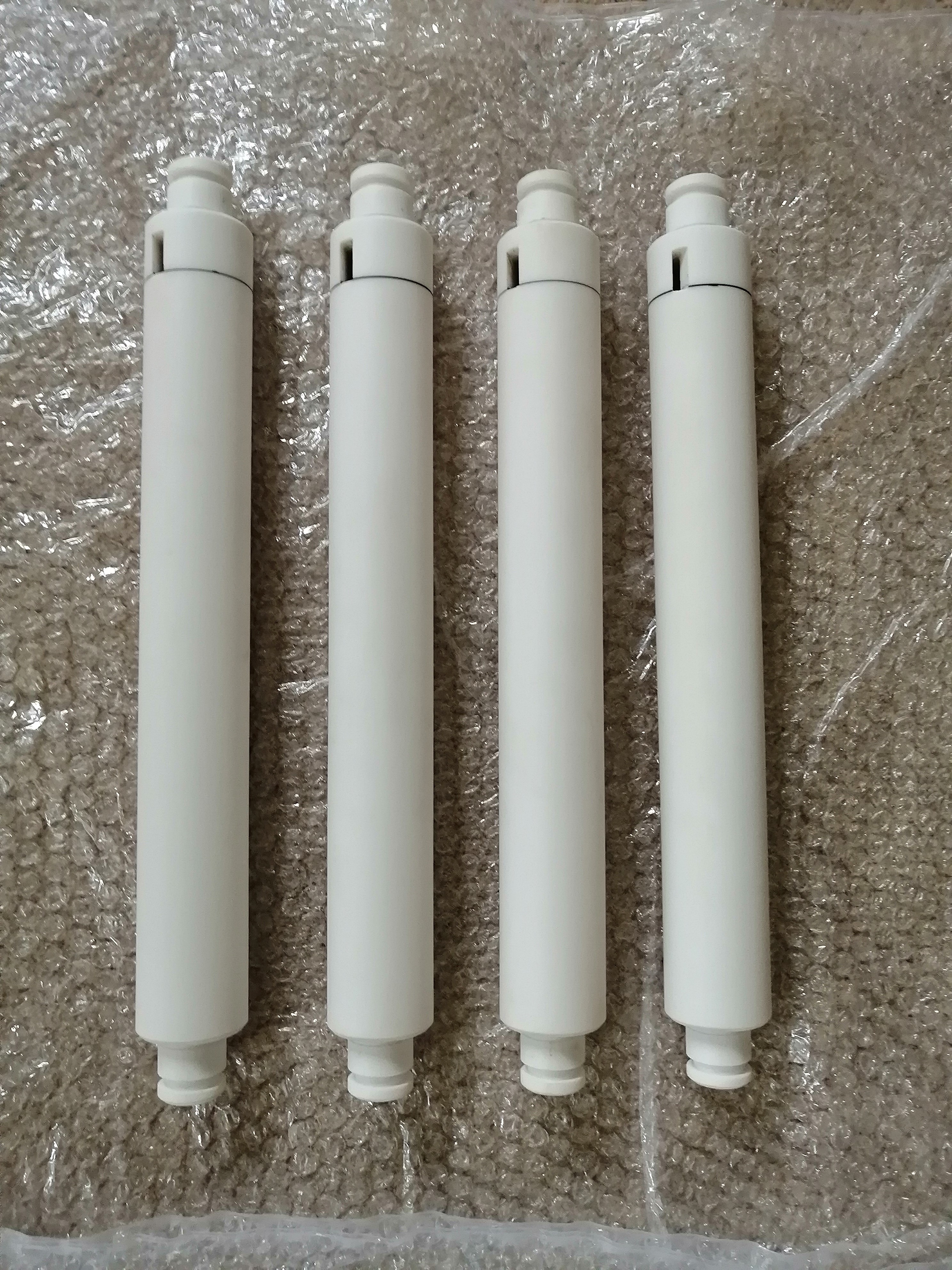

• Liners available as standard in alumina ceramic, with an option for RBSC for very highly erosive applications

Applications

• Downstream equipment protection
• Produced water reinjection, with sand management and sand removal <5 micron
• Sand cleaning for overboard disposal, or bag collection and transport onshore, cleaned to an oil on sand level of <0.5% by weight

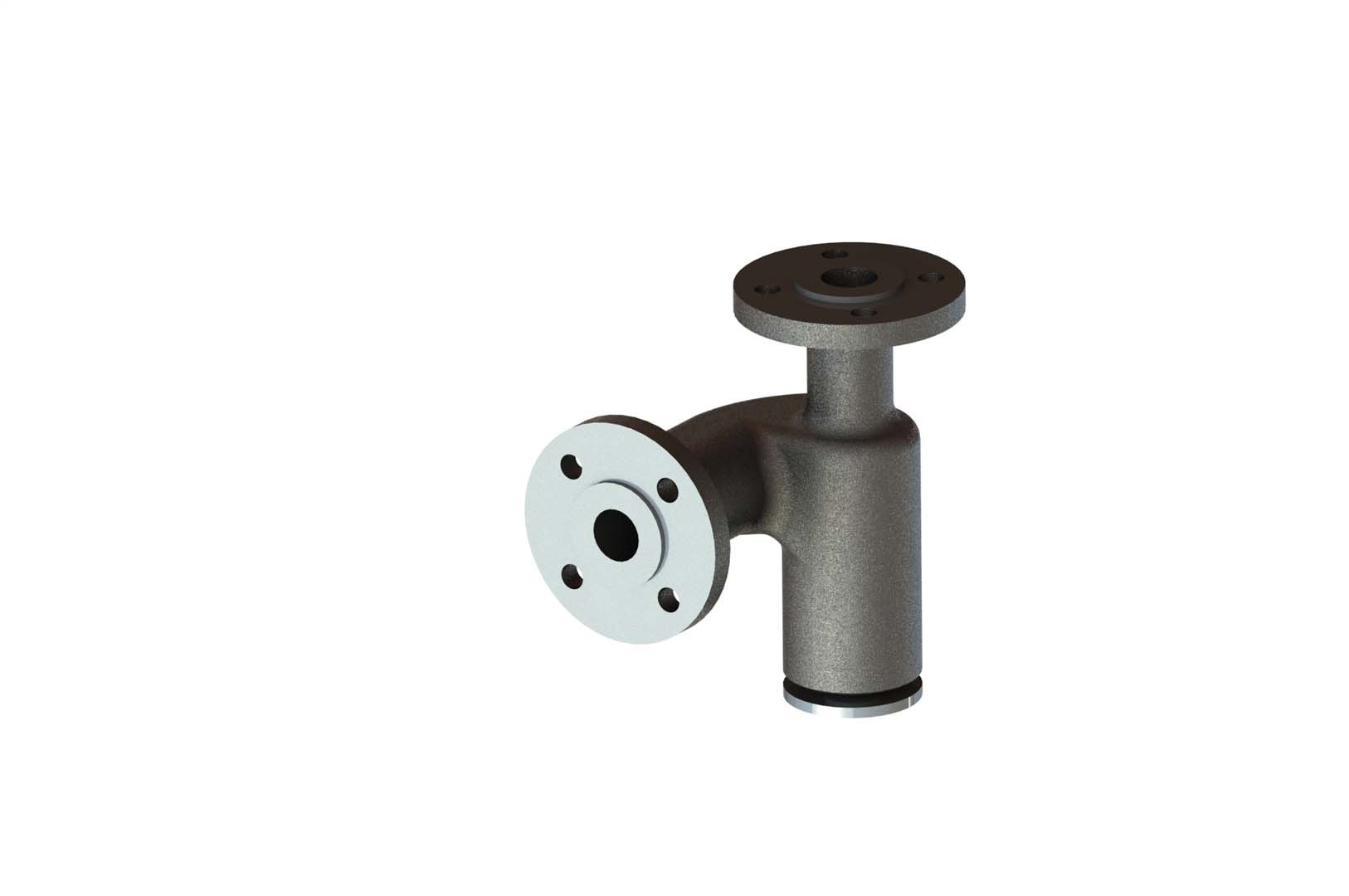

Sand Management - EnSep Sand Fluidiser

Summary

The EnSep Sand Fluidiser is an on-line vessel solids removal device, providing a cost effective, low maintenance method of solids fluidisation and onward transportation to resolve sand management issues.

Advantages

• On-line sand removal
• Can be retrofitted into existing Pressure Vessels
• No moving parts
• The modular manifold design provides solids transportation solutions for virtually any diameter and length vessel
• Can be supplied in a variety of materials of construction – stainless, duplex / super duplex & Inconel
